MCA Front mounted roller shutters

OUTBOX

The Outbox roller shutter is the ideal solution for the installation on the existing window frames. There are two types of boxes that harmonize perfectly with the the details of the facade.

Benefits

  • Mild temperature in your house during the hot summer days
  • Eco friendly cooling solution
  • Healthy cooling solution
  • Discourage intruders and provides burglary resistance
  • Quick protection of the window in case of heavy rainfall, hail and storm.
  • Sound insulation - roller shutters minimize all type of sounds, bothersome noises remain outside
  • In many cases the usage of a solar shading system can make an active cooling system superfluous.
  • Wide variety of colors and wood imitation
  • Manual or electric command
  • Insect reppeling screens can be integrated in the system
  • Provents heating energy loss during wintertime
  • Reduce by 10% the heating energy consumtion

Video presentations

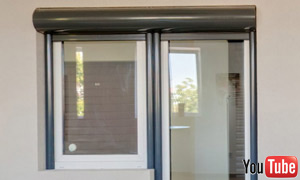

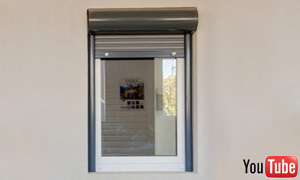

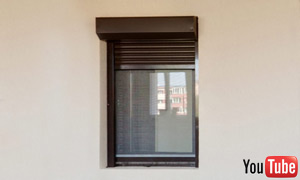

  • OUTBOX - MCA front mounted roller shutter with integrated insect net, square shaped box, ribbon driven

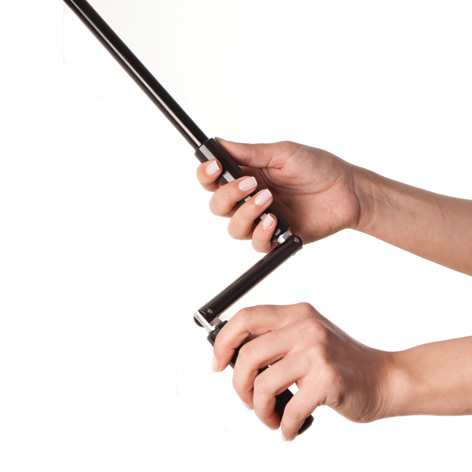

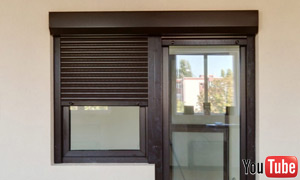

  • OUTBOX - MCA front mounted double roller shutter with integrated insect net, square shaped box, ribbon and crank driven

  • OUTBOX - MCA front mounted roller shutter with integrated insect net, square shaped box, remote controled

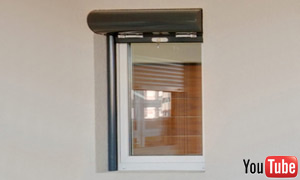

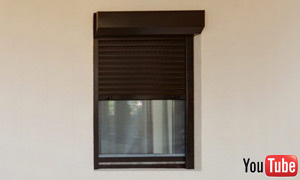

  • OUTBOX - MCA front mounted roller shutter with integrated insect net, round shaped box, ribbon driven

  • OUTBOX - MCA front mounted double roller shutter with integrated insect net, round shaped box, remote controled

  • OUTBOX - MCA front mounted double roller shutter with integrated insect net, round shaped box, with spring and keylock

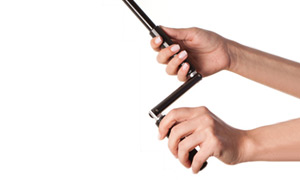

Accessories and drivers

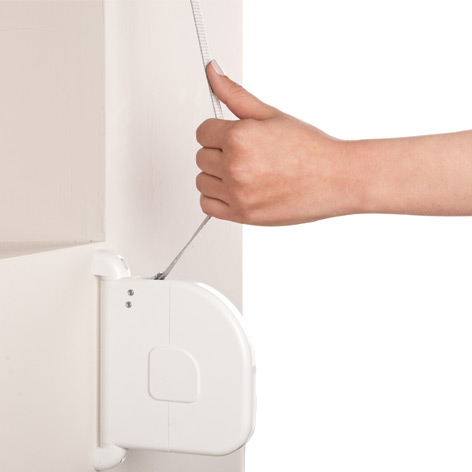

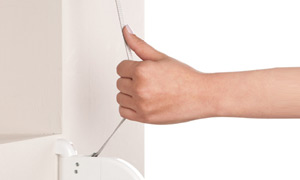

  • Ribbon

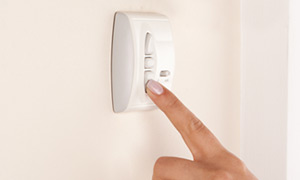

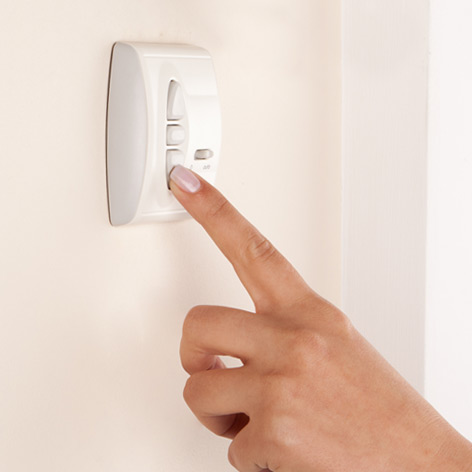

  • Wall mounted wireless button

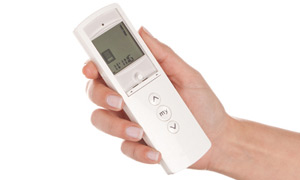

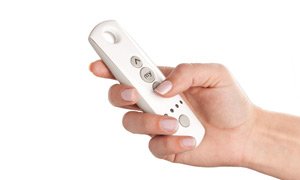

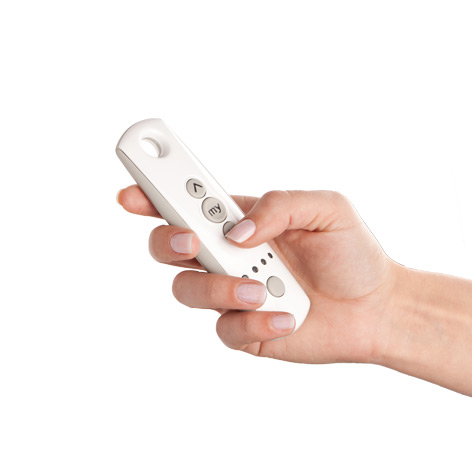

  • Remote Control

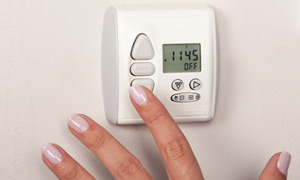

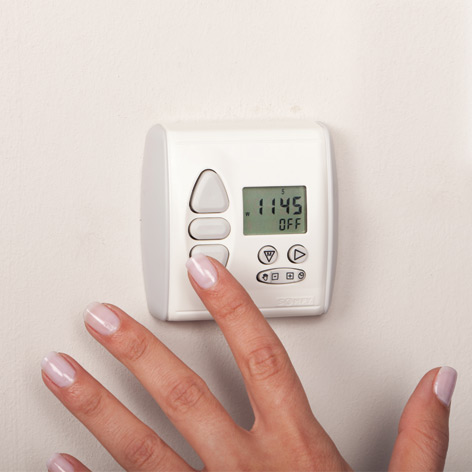

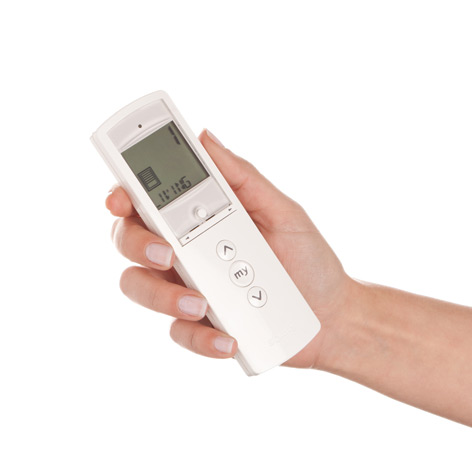

  • Remote control with LCD display

  • Wall mounted wireless button

  • Acţionare cu buton

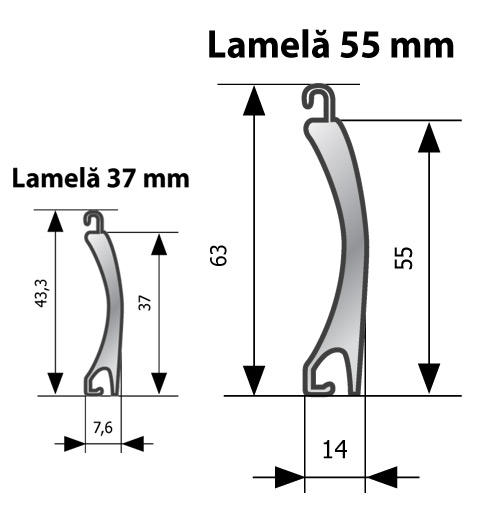

Colors for 37 mm slats

White
900 - RAL 9016

Cream white
919 - RAL 1015

Light Wood
915

Golden
920

Silver
916 - RAL 9006

Grey
901 - RAL 7038

Dark Wood 1
907

Dark Wood 2 (walnut)
910

Silver grey Rafaello
911 - RAL 7015

Dark Brown
921

Walnut
925

Goalden Oak
924

Brown red
912 - RAL 8017

Brown
903 - RAL 8014

Mahogany
926

Wenge
928

Silver Bordeaux Rafaello
914 - RAL 8016

Green
906 - RAL 6005

Blue
904 - RAL 5010

Grey Anthracite
957 - RAL 916

Colors for 55mm slats

White
900 - RAL 9016

Silver
916 - RAL 9006

Cream white
919 - RAL 1015

Grey
901 - RAL 7038

Dark Brown
921

Brown
903 - RAL 8014

Dark Wood 1
907

Goalden Oak
924



Tehnical details MCA roller shutters

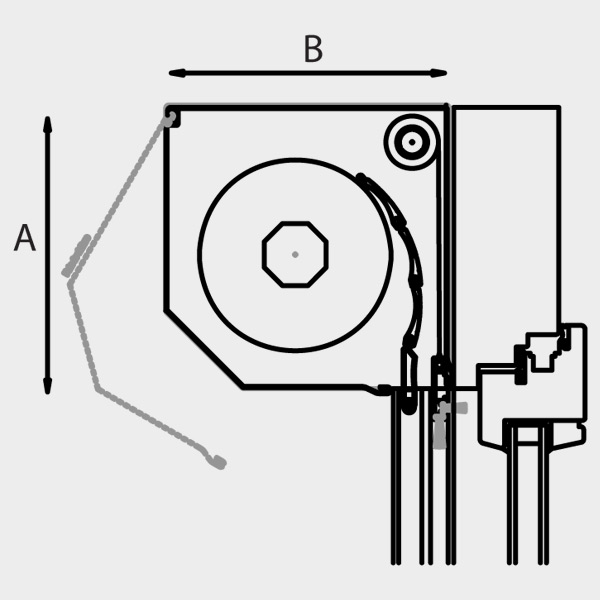

OUTBOX - MCA front mounted roller shutter square shaped box

Slate Box size Guide rail size Max.
width
Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon/Snur Crank/Spring/Electric

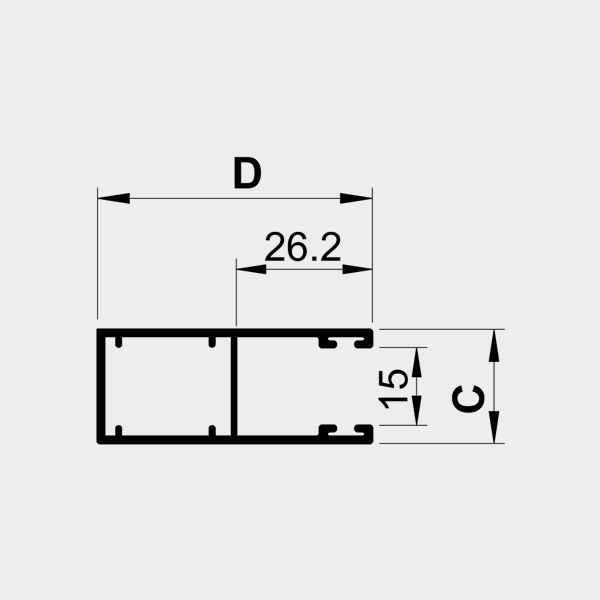

138mm 138mm 22mm 53mm - simplu

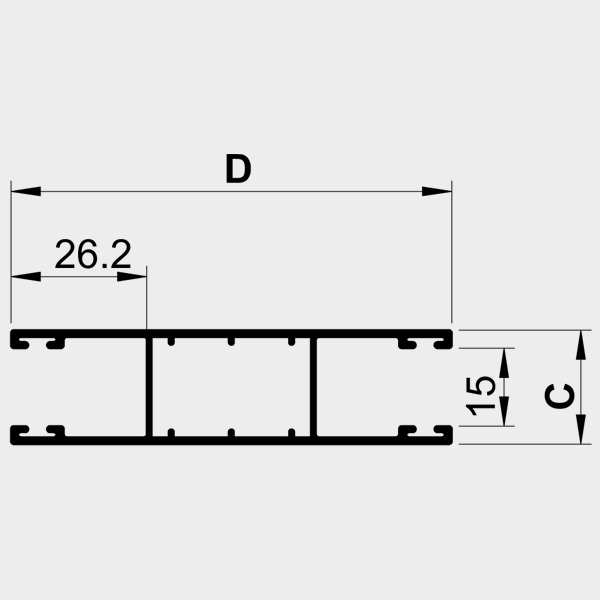

85mm - “H”
1670mm 1500mm 2.5mp 5mp
150mm 150mm 2150mm 2010mm
165mm 165mm 2800mm 2500mm
180mm 180mm 3180mm 2880mm
205mm 205mm 3900mm 3500mm

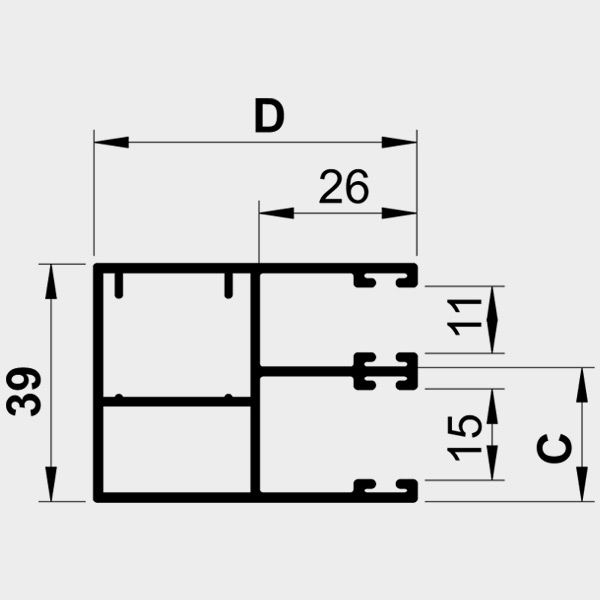

OUTBOX - MCA front mounted roller shutter with integrated insect net, square shaped box

Slate Box size Guide rail size Max.
width
Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon/Snur Crank/Spring/Electric
138mm 138mm 39mm 53mm 1100mm 801mm 2.5mp 5mp
150mm 150mm 1530mm 1330mm
165mm 165mm 2170mm 1730mm
180mm 180mm 2500mm 2500mm
205mm 205mm 2500mm 2500mm

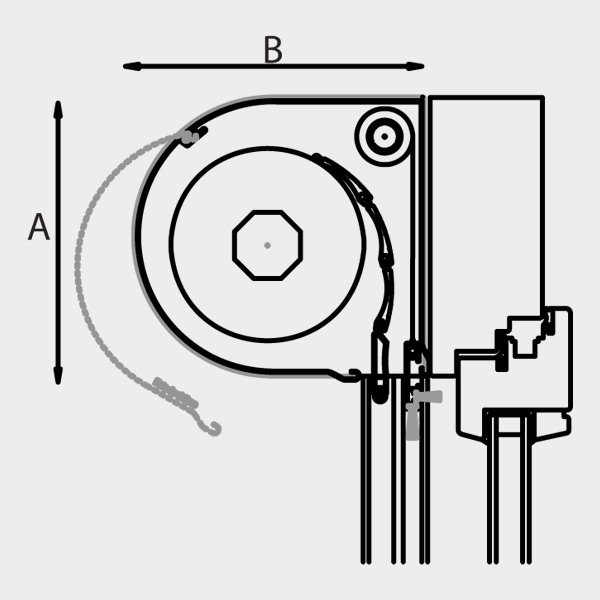

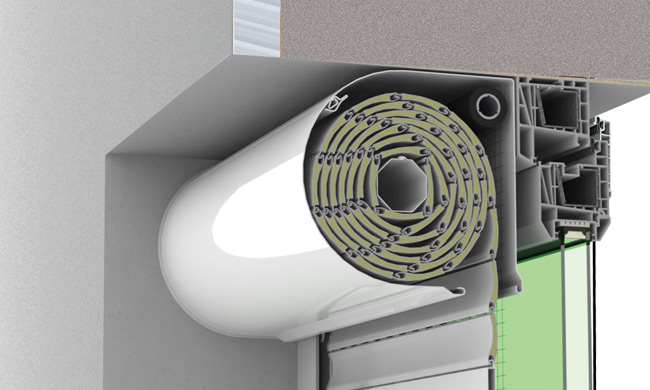

OUTBOX - MCA front mounted roller shutter round shaped box,

Slate Box size Guide rail size Max.
width
Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon/Snur Crank/Spring/Electric
138mm 138mm 22mm 53 mm -simplu
85 mm - “H”
1670mm 1500mm 2.5mp 5mp
165mm 165mm 2700mm 2450mm
180mm 180mm 3270mm 3050mm


OUTBOX - MCA front mounted roller shutter with integrated insect net, round shaped box

Slate Box size Guide rail size Max.
width
Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon/Snur Crank/Spring/Electric
138mm 138mm 39mm 53mm 1100mm 800mm 2.5mp 5mp
165mm 138mm 2430mm 2060mm
180mm 180mm 250mm 2060mm


OUTBOX - MCA front mounted roller shutter square shaped box

Slate Box size w/o integrated insect net
electric (button or remote)
55mm A B Max. Hight Max. Surface
205mm 205mm 1920mm 7mp
250mm 250mm 3380mm 8mp
300mm 300mm 4300mm 8mp
